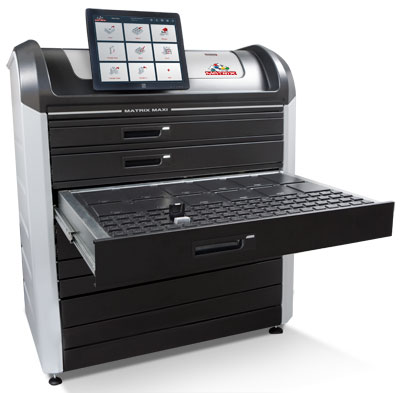

MAXI stands tall with a large capacity, surprisingly small footprint and a sleek, ergonomic design.
Secure with electronically locked drawers & bins.


MAXI leads the MATRIX range of automated tool dispensers, offering the widest selection of bin options and largest storage capacity. Suitable for a variety of cutting tools and related commodities, such as:

  • Cutters, drills, holders and blades
  • Inserts
  • Solid carbide tools
  • Gauges
  • Measuring devices
  • Small to medium sized grinding wheels
  • Fixtures and accessories
  • Small to medium sized industrial commodities
Storage Options
  • Drawers per cabinet: 1-12
    [depends on drawer heights and quantity of Auto-Locks]
  • Drawer heights (net): 50mm/2”, 75mm/2.9”, 100mm/3.9” and 125mm/4.9”
  • Load weight per drawer: up to 50kg/110lb (90kg/190lb for Jumbo drawer)
  • 16 bin sizes
  • 30 drawer options with multiple bin configurations
  • Maximum 198 bins per drawer

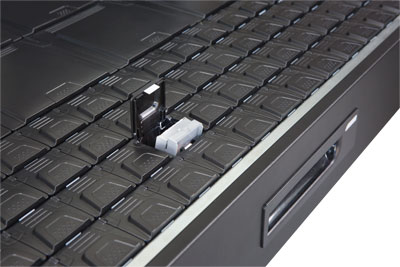

  • Auto-Lock mechanism locks bins when the drawer is returned (optional)
  • Cabinet weight varies depending on number of drawers and Auto-Locks:
    MAXI with 4 drawers and 4 Auto-Locks ~400kg/880lb;
    MAXI with 12 drawers ~600kg/1325lb
  • Cabinet frame includes 4 adjustable legs and removable front panel for forklift access
  • Cabinet dimensions: 1180mm/47” (W) x 752mm/30” (D) x 1469mm/58” (H)
  • Available in 2 versions: TOUCH (stand-alone) and POD (add-on)

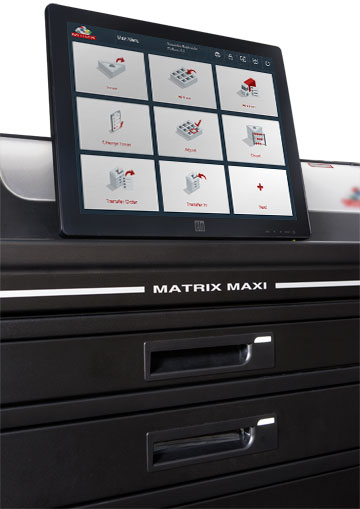

  • TOUCH: supplied with PC, 17” touchscreen, UPS (surge protection and power backup), barcode reader, network switch and management software
  • PREMIUM: MAXI TOUCH cabinet with upgraded specifications for an enhanced user experience • 24” wide touchscreen • High performance PC (i5) • 2D barcode reader • Fingerprint reader • USB hub • Extra fast ethernet switch • 2 Year hardware warranty
  • Manual override in case of power failure
  • RFID and fingerprint readers are available
  • Network: all versions can connect directly to the LAN. POD can also connect to a TOUCH
  • Electrical supply: 110AC +/-10% 4.6A or 220AC +/-10% 2.2A
  • Cabinet and drawer frames supplied in top-quality industrial grade zinc coated steel
  • Hood and side panels supplied in ABS and bins supplied in PC-ABS
  • All metal, plastic and electronic parts are made from recyclable material
  • External colors: black (RAL9005) and silver (RAL9116)
  • Manufactured under QMS ISO9001-2008
  • CE & UL/CA certified
