DLS
DLS -V 5D
DLS 8D
Economical solution with flexible drawer partitions suitable for small and large items.
Semi-secure with 8 electronically locked drawers.
Applications

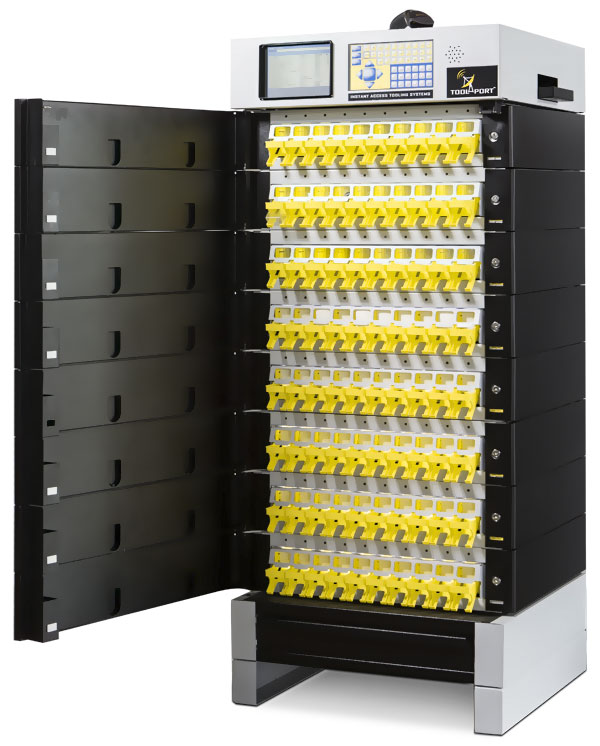

ToolPort is the single insert specialist amongst the MATRIX range of automated tool dispensers. Also suitable for:
- Indexable drilling heads
- Small solid carbide end-mills
- Miniature tools
- Small parts
Storage Capacity & Specifications
| 4D Model | 8D Model | |
|---|---|---|
| Footprint | Benchtop 677mm/27” (W) 614mm/24” (D) 876mm/35” (H) | Free Standing 677mm/27” (W) 614mm/24” (D) 1448mm/57” (H) |
| Drawers | 4 | 8 |
| Maximum insert capacity | 800 | 1600 |
| Cartridges per drawer | 10 (1 SKU per cartridge) | |
| Storage Containers per cartridge (max.) | 20 single or 10 double Containers are reusable Each cartridge is factory loaded with 10 single containers | |
| Single Container dimensions | 38.5mm/1.51” (W) x 12.4mm/.488” (D) x 38.8mm/1.527” (H) | |
| Double Container dimensions | 38.5mm/1.51” (W) x 27.4mm/1.078” (D) x 38.8mm/1.527” (H) | |
| TOUCH version | Software license, PC, touchscreen, single power supply 110-230V, network switch and barcode reader (with flexible arm for optional external installation) | |
| POD version | Single power supply 110-230V and network switch Operated via touchscreen on an adjacent MATRIX cabinet | |
| Front access forklift base | 100mm/4” (H) | |
| CE certified | √ | |
| Optional Accessories | Wheels; Single Containers (pack of 200) and Double Containers (pack of 100); RFID reader; Fingerprint reader; UPS; UPS Shelf | |
